OM401

PDF Download

GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of the tough applications.
• Displacement 18cc/r, single
• Axial clearance automatic compensation function
• Precision machining
• Reliable quality and stable performance

Online Inquiry Message Inquiry

Specification
Dimensions
Application
Product
Message

Specification

Model

Displacement

(ml/r)

Pressure(bar)

Speed(r/min)

Input

Output

Rated

Max

Rated

Max

Min

OM401GR18K05S87SP18-X

140

160

1500

2500

600

Φ18

Φ14

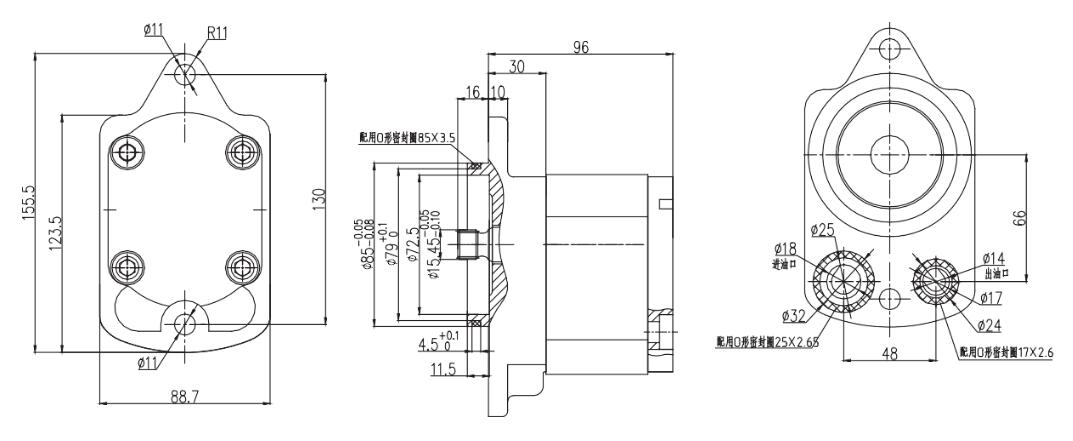

Dimensions

The OM series pump is a special kind of GRH gear pump, mainly gear pumps for pilot and lubrication of excavators. At present, nearly 10 models have been developed. After nearly 10-year experience in this market, this series of products has been proven to be reliable and excellent in performance.

Application
