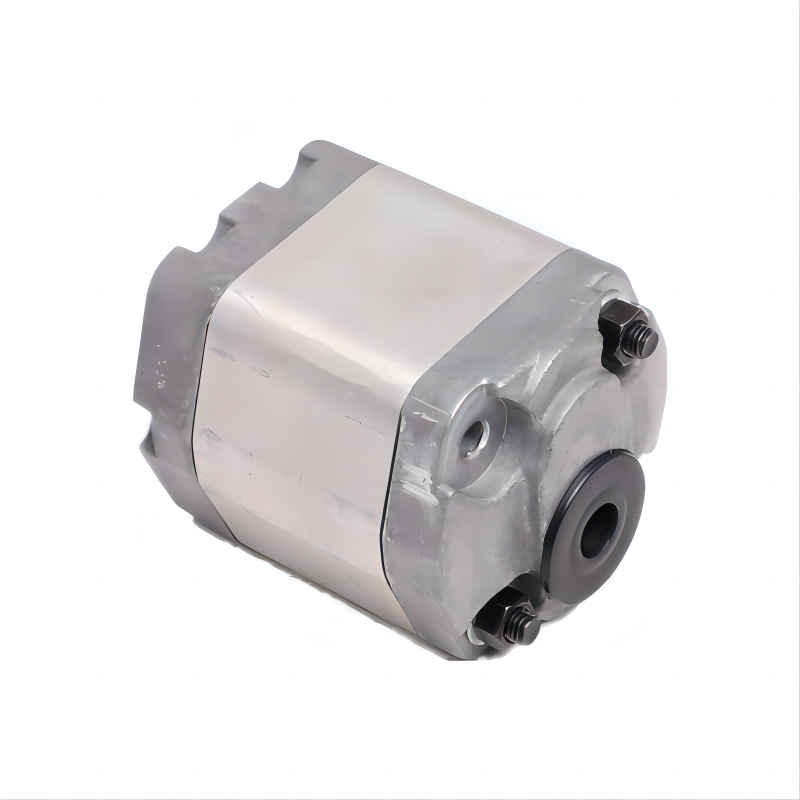

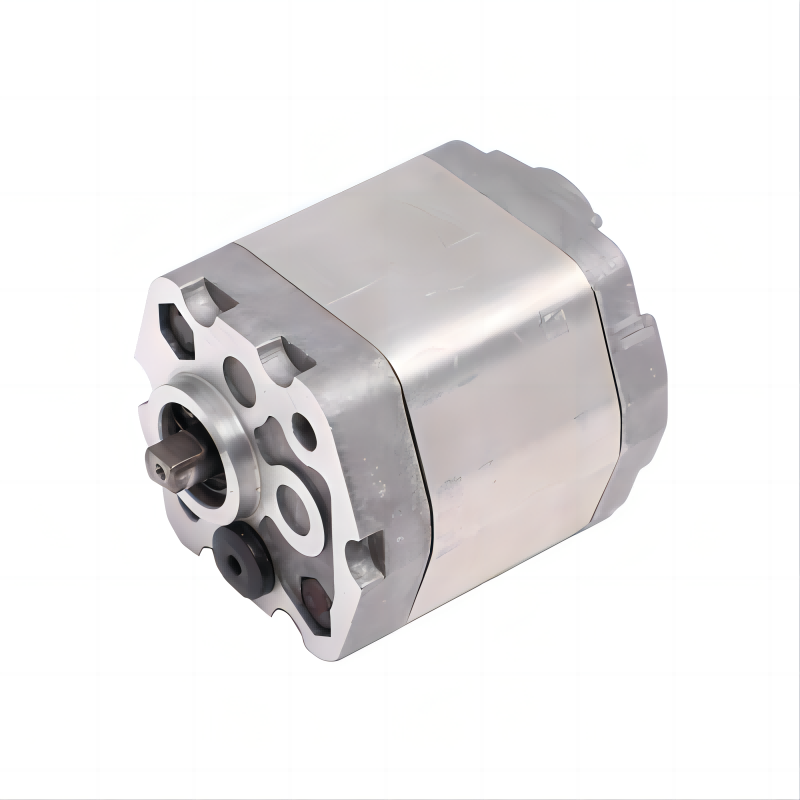

0PF-K gear pump/ 0PF-L gear pump
GRH group 0 gear pumps is formed of a gear housing, mounting flanges and covers in aluminum material, offering outstanding mechanical and volumetric efficiency.
GRH gear pump includes nine groups of gear pump, ranging from the displacement range of 0.16 up to 199cc/r, which can meet the needs of most tough applications.
• Displacement 0.16-2cc/r, single pump, tandem pump , and multiple pumps
• Axial clearance automatic compensation function
• Made by foreign CNC machines
• Reliable and stable
Specification
| Model | Displacement | Pressure(bar) | Speed(r/min) | SS | Inlet | ||||
| (ml/r) | Rated | Max | Rated | Max | Min | L (mm) | L1 (mm) | ||
| 0PF0.16L07B01*** | 0.16 | 200 | 250 | 3000 | 5000 | 800 | 58.2 | 30.8 | G1/4 |
| 0PF0.25L07B01*** | 0.25 | 200 | 250 | 3000 | 5000 | 800 | 59 | 31.3 | |
| 0PF0.38L07B01*** | 0.38 | 200 | 250 | 3000 | 5000 | 800 | 60.3 | 31.9 | |
| 0PF0.50L070B01*** | 0.5 | 200 | 250 | 3000 | 5000 | 800 | 61 | 32.3 | |
| 0PF0.75L07B01*** | 0.75 | 200 | 250 | 3000 | 5000 | 800 | 63.5 | 33.5 | |
| 0PF1.00L070B01*** | 1.00 | 200 | 250 | 3000 | 5000 | 800 | 66 | 34.8 | |
| 0PF1.25L07B01*** | 1.25 | 200 | 250 | 3000 | 5000 | 800 | 68.5 | 36 | |
| 0PF1.50L07B01*** | 1.5 | 200 | 250 | 3000 | 5000 | 800 | 70 | 37 | |
| 0PF1.75L07B01*** | 1.75 | 160 | 200 | 3000 | 4500 | 800 | 73 | 38.3 | |
| 0PF2.00L070B01*** | 2.00 | 160 | 200 | 3000 | 4500 | 800 | 75.5 | 39.5 | |
Dimensions
GRH 0PF series gear pump are widely used in all the small hydraulic power unit or mini power packs due to its compact & small structure and lighter weight. It’s also used to lubricate transmission system due to its small displacement.
Application
