Product

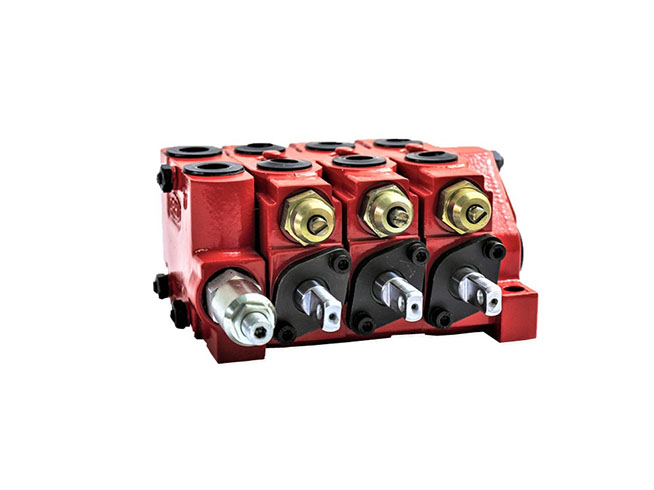

GKV50 Valve

PDF Download

GRH has three series of sectional valve, GKV35, GKV50 and GKV80 series. The multi-way valve of the GKV series is a modular open multi-way valve, modules with different functions can be selected to meet the design of various complex systems.

• Compact size, light weight, meeting the requirements of small installation space

• powerful function for different applications

• High processing accuracy, for a very accurate tolerance

• cost effective, customizable, and complete system supply

GRH mainly has three sectional valve series: GKV35, GKV50 and GKV80. The GKV50 series adapted modular design, the system designer can choose different modules to design a complex system, main valves spool is designed to satisfy with gives user the freedom for choosing different relief valve and different port locations, there are number of different work section modules to choose from, to satisfy with the customer’s needs, different end sections also provide the customer’s needs for return ports or power beyond functions.

  • Compact size and light weight, meeting the requirements of small installation space
  • High processing accuracy, using high-end imported processing equipment to ensure internal tolerances
  • Unique hydraulic lock design, perfectly solve the problem of static settlement
  • High cost performance, high customization, and complete system supply

Specification

Rated flow rate 50L/min Internal leakage(@70bar)A、B to T 25-35cc/min
Maximum flow rate 60L/min Internal leakage(@70bar)A、B to T
Minimum flow rate 20L/min With P.O. check 2-5cc/min
Maximum pressure at P ports 350bar With floating function(1、2and F position) +7/-7mm
Maximum pressure at A/B ports 350bar With floating function(1、2and F position) +7/-7 -10mm

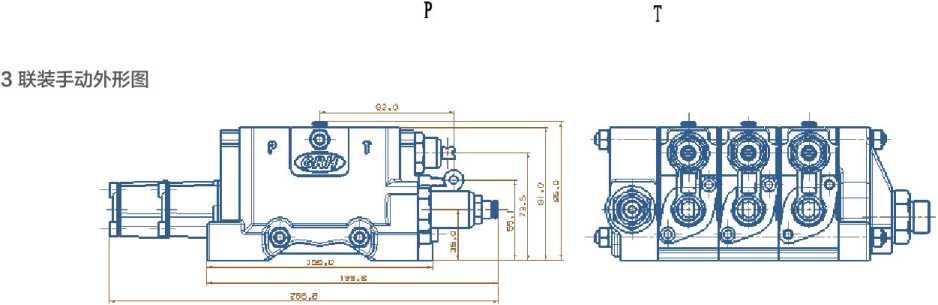

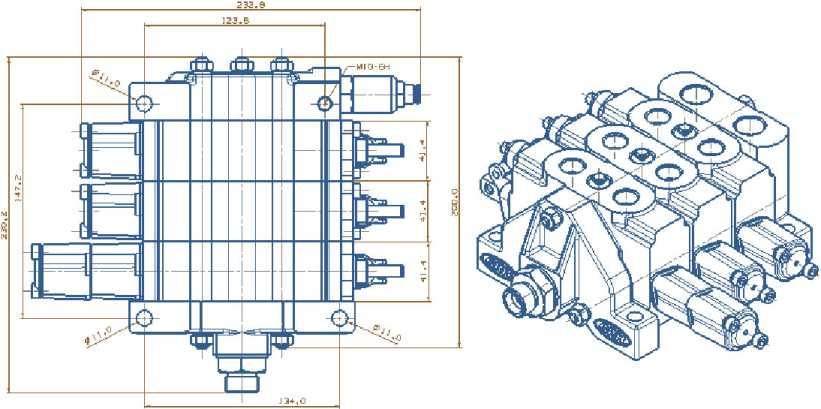

Dimensions

GRH GKV50 series sectional valve, because of its flexible assembly method, can integrate multiple functions. It is widely used in agricultural machinery, engineering machinery, and industrial equipment.

Application
