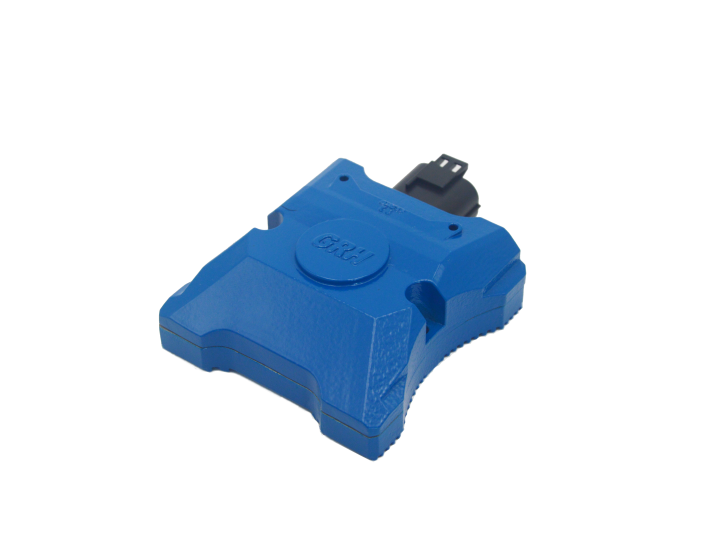

• • GHC-12A control module is an electro-hydraulic proportional controller suitable for various electro-hydraulic proportional valves and solenoid switching valves. Both superior performance and super high cost perfmance.

• • For mobile machinery and industrial hydraulic equipment. Including but is not limited to the following fields: construction machinery, agriculture, forestry, construction, marine engineering, earthwork and material handling, etc.

• • GHC-12A controller and proportional cartridge valve can achieve optimal pressure, flow and position control, and meet the application requirements with high repetition accuracy and high reliabiliable solutions.

Characteristic

■ CAN Open Communication Function

• • Programmable controller with CAN communication function.

• • Can be used as the node of the CAN bus distributed control system.

• • Through the CAN bus communication, the sensor feedback signal can be configured as the input signal.

• • The input, output and feedback signals can be fed back to the upper computer or display through the CAN bus.

■ The Quick Settings Page

• • Set up the GHC-12A controller using the upper computer software.

• • In the typical pressure and flow control, a fas and reliable solution can be achieved only by selecting and setting the relevant parameters in the predefined interface of the upper computer.

• • Open loop control, can customizeslope rate and start point.

• • Closed-loop control, customized PID parameters.

• • Can be easily installed in a suitable position: can be easily connected with the pump and the motor and the integrated valve block, can also be installed in the control cabinet and cab.

LED Signal Light

Technical Parameter

Pin Wiring

Wiring notes

• • 1) For good grounding, isolate pin 12 (power supply ground) and pin 7 and 5 (input / output / reference voltage ground)

• • 2) According to CAN communication application standards, cables use twisted pair or shielded twisted pair

• • 3) Ensure that the CAN Bus terminal resistance is configured

• • 4) Ensure that the wiring harness minimizes electromagnetic interference between signal cables

• • 5) Isolate the high-voltage AC cable and the DC signal and power cable

• • 6) Ensure that all cables are not short-connected and disconnected

• • 7) Ensure the safety of useless cables and pins, and do not short-connect them

• • 8) If there is a battery charging equipment during the installation, please isolate the controller

• • 9) Observe health and safety regulations during operation and protect site personnel

• • 10) Wiring operation after power-off

Installation Mode and Dimensions

• • Standard connection mode

• • Expandable installation method

Application Examples

Typical application: oil cylinder speed control

• • A proportional electromagnet can be controlled

• • It can also control the two proportional electromagnets simultaneously

Schematic Diagram

Equipment Applications

Typical Application: Motor (fan) Speed Control

• • Programammable control, the fan speed is relatively independent of the engine speed

• • Precise control of the coolant temperature by the sensor

• • The overall size is small and can be arranged flexibly

• • Reduce fuel consumption, exhaust emissions, and low noise

• • The inversion function enables the fan to automatically clean the radiator

Schematic Diagram

Equipment Applications

Typical Application: Load-sensitive pump

• • Timely sense the outlet pressure and load pressure of the pump, and adjust the output flow of the pump

• • Electronic controller, sensor and pump (variable pump or quantitative pump) together constitute an intelligent solution, through electronic control to ensure the system timely response and energy efficiency saving

• • The current used liquid control load sensitive flow system can be easily upgraded to the electronic control hydraulic load sensitive system

Schematic Diagram

Equipment Applications

Typical Application: Position control-large-horsepower tractor elevator

• • Specifically designed for high-horsepower tractors

• • Proportion elevator (plough depth position control)+ multiple hydraulic control proportional valve

• • Electronic controlled lifting valve set for pear depth position control (Front pressure compensation), can be provided by split or integrated with the triple valve

• • Flow of 20-100 L/min is optional

Schematic Diagram

Equipment Applications

Typical Application: Pressure control

• • The controller, sensor and electric proportional valve are combined for stage pressure control as needed

Schematic Diagram
