2APF Gear Pump

GRH Multiple hydraulic pumps in aluminum and with external gears, already assembled, belonging to size Group 2. Some parts are available with cast iron flanges. You can choose between standard, at separate-stages, single inlet, and shaped pumps according to the catalog. We appreciate your enquiry through emails.

The performances of Group 2 available are: displacement 4.2cc – 39 cc, maximum pressures up to 300 bar.

Reliable and stable; even at the low speed.

Online Inquiry Message Inquiry

Specification

Model	Displacement (ml/r)	Pressure(bar)		Speed(r/min)			L	L1	Input	Output
Model	Displacement (ml/r)	Rated	Peak	Rated	Max	Min	(mm)	(mm)	Input	Output
2ABPF04LJ52SB03*	4	200	250	2000	3500	500	96	43.3	1-1/16-12UN-2B	3/4-16UNF-2B
2ABPF06LJ52SB03*	6	200	250	2000	3500	500	98	45
2ABPF08LJ52SB03*	8	200	250	2000	3500	500	102	46.5
2ABPF10LJ52SB03*	10	200	250	2000	3500	500	104	48
2ABPF12LJ52SB03*	12	200	250	2000	3500	500	108	50
2ABPF14LJ52SB03*	14	200	250	2000	3500	500	110	51
2ABPF16LJ52SB03*	16	200	250	2000	3500	500	114	53
2ABPF18LJ52SB03*	18	200	250	2000	3500	500	117	55
2ABPF20LJ52SB03*	20	200	250	2000	3500	500	120	56
2ABPF23LJ52SB03*	23	200	250	2000	3000	500	123	58
2ABPF25LJ52SB03*	25	200	250	2000	3000	500	128	60
2ABPF28LJ52SB03*	28	160	200	2000	3000	500	133	63
2ABPF30LJ52SB03*	30	160	200	2000	3000	500	136	64

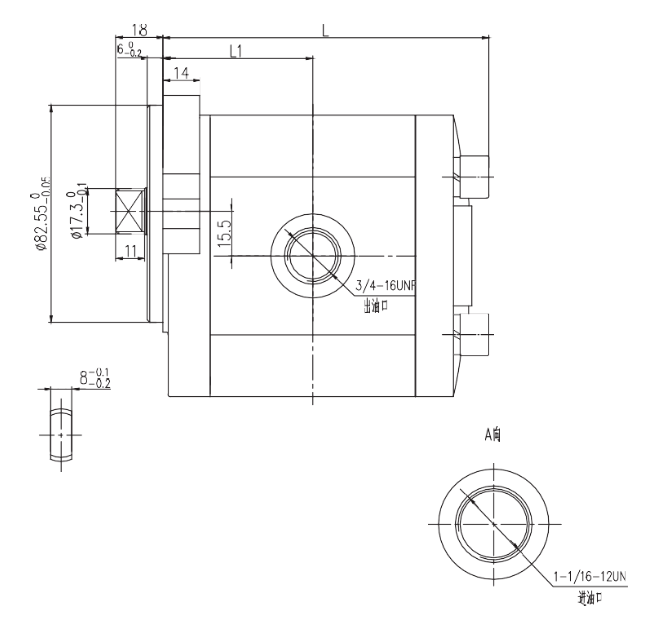

Dimensions

They are one of the most common types of pumps for hydraulic fluid power applications. Gear pumps are also widely used in hydraulic installations to pump hydraulic fluids, such as small vehicles, scissor lit and boom lift, lawn mowers, and electric forklifts, etc. we have gear pump with an integral valves as option for pressure balance design. The cast iron flange gear pump can also be used for the priority pump mounted on the piston pump.
