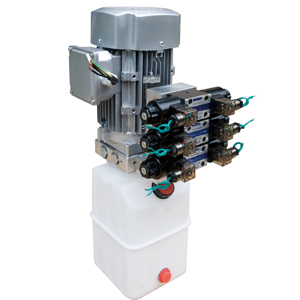

GRH has a few hundred kinds of power units for different applications, which are compactly integrated with high-pressure gear pumps, AC motors, hydraulic valves, reservoirs and other components, which can be driven by controlling the start, stop, rotation, and reversal of hydraulic valves of the power source. End mechanism movement. This product is designed for car tyre change machine, which controls three sets of double-acting cylinders.
• Customization design
• Compatible with hydraulic system
• Compact structure, low noise, high efficiency and energy saving
• Self-made quality core components, stable and reliable
Specification
| Model | Motor | Discp.
(cc/r) |
Tank Cap.
(L) |
Pressure
(MPa) |
Installation | Port Size |
| AC-F40-3.2/F-1.5/380/1450/**-6H-C | 380V1.5KW 1450RPM 50Hz | 3.2 | 6 | 18 | Horizontal | G1/4 |
| AC-F40-4.2/F-2.2/380/1450/**-6H-C | 380V 2.2Kw 1450RPM 50Hz | 4.2 | 20 |
Dimensions
Guorui Hydraulic double-acting power unit can be adjusted according to customers’ requirements. This product is widely used in wingspan vehicles, tire changers, snowplows, etc.
Application
